Eww - Widgets for everyone!
Eww (ElKowar's Wacky Widgets, pronounced with sufficient amounts of disgust) Is a widgeting system made in rust, which let's you create your own widgets simmilarly to how you can in AwesomeWM. The key difference: It is independent of your window manager!
Configured in XML and themed using CSS, it is easy to customize and provides all the flexibility you need!
Contents
How to install Eww
Prerequisites
- rustc
- cargo (nightly toolchain)
Rather than with your system package manager, I recommend installing it using rustup, as this makes it easy to use the nightly toolchain, which is necessary to build eww.
Building
Once you have the Prerequisites ready, you're ready to install and build eww.
First clone the repo:
git clone https://github.com/elkowar/eww
then enter it.
cd eww
and then to build:
cargo build --release
Running eww
Once you've built it you can now run it by entering:
cd target/release
and then make the Eww binary executable
chmod +x ./eww
and then to run it do
./eww open <window_name>
<window_name> is the name of the window, see The windows block.
Configuration
For specific built in widgets <box>, <text>, <slider>, etc see Widget Documetation
Placing the configuration file
The configuration file and the scss file should lay in your $HOME/.config/eww folder. The xml file should be named eww.xml and the scss should be named eww.scss
So the directory structure should look like this:
$HOME
└──.config
└──eww
├──eww.xml
└──eww.scss
Variables
If you create a <var> or a <script-var>, you can reference them in your <box> by doing {{var}}. Where var is your variable name.
The <var> tag
Allows you to repeat the same text multiple times through without retyping it multiple times.
Example: This will define a variable named banana, with the default value "I like bananas."
<variables>
<var name="banana">I like bananas.</var>
</variables>
You can then reference it in your widgets by doing:
<box>
{{banana}}
</box>
To change the value of the variable, and thus change the UI, you can run eww update banana "I like apples"
The <script-var> tag
Allows you to create a script that eww runs. Useful for creating volume sliders or anything similar.
Example:
<variables>
<script-var name="date" interval="5s">
date +%H:%M
</script-var>
</variables>
and then reference it by doing:
<box>
{{date}}
</box>
The interval="5s" part says how long time it should take before Eww runs the command again.
Here are the available times you can set:
| Shortened | Full name |
|---|---|
| ms | Miliseconds |
| s | Seconds |
| m | Minutes |
| h | Hours |
Tail
If you don't want a set interval and instead want it to tail (run the script when it detects a change is present) you can simply remove the interval="5s" so it becomes:
<variables>
<script-var name="date">
date +%H:%M
</script-var>
</variables>
The <definitions> block
In here you whole widget will be made, and you can also create your own widgets. Check Widget Documentation for pre-defined widgets.
Custom widgets
Let's get a small config and break it down.
<definitions>
<def name="clock">
<box>
The time is: {{my_time}} currently.
</box>
</def>
<def name="main">
<box>
<clock my_time="{{date}}"/>
</box>
</def>
</definitions>
<variables>
<script-var name="date">
date
</script-var>
</variables>
That's a long config just for a custom widget. But let's break it down and try to understand it.
This part:
<def name="clock">
<box>
The time is: {{my_time}} currently.
</box>
</def>
Is the custom widget. As we can see by the
<def name="clock">
the widget is called clock.Or referenced <clock>
The {{my_time}} is the value we assign to be well, our time. You can actually set to be anything, it doesn't have to be a time. You can compare it to value=""
So if we look at:
<def name="main">
<box>
<clock my_time="{{date}}"/>
</box>
</def>
we can see that we assign {{my_time}} to be {{date}} and if we look at
<script-var name="date">
date
</script-var>
we can see that {{date}} is simply running the date command.
It doesn't have to be {{my_time}} either, it can be anything.
<def name="clock">
<box>
The time is: {{very_long_list_of_animals}} currently.
</box>
</def>
is valid.
To use that it would look like this:
<def name="main">
<box>
<clock very_long_list_of_animals="{{date}}"/>
</box>
</def>
The <windows> block
This is the part the Eww reads and loads. The <windows> config should look something like this:
<windows>
<window name="main_window" stacking="fg">
<size x="300" y="300" />
<pos x="0" y="500" />
<widget>
<main/>
</widget>
</window>
</windows>
<window name="main_window"> is the part that eww runs when you start it. In this example you would run eww by doing:
./eww open main_window
but if renamed the <window> to be <window name="apple"> we would run eww by doing:
./eww open apple
The stacking="fg" says where the widget will be stacked. Possible values here are foreground, fg, background and bg.
foreground or fg always stays above windows.
background or bg always stays behind windows. So it will stay on your desktop.
If you were to remove the stacking="fg" it would default it to fg.
You can also have multiple windows in one document by doing:
<windows>
<window name="main_window">
<size x="300" y="300" />
<pos x="0" y="500" />
<widget>
<main/>
</widget>
</window>
<window name="main_window2">
<size x="400" y="600"/>
<pos x="0" y="0"/>
<widget>
<main2/>
</widget>
</window>
</windows>
<size>sets x-y size of the widget.<pos>sets x-y position of the widget.<widget>is the part which you say which<def>eww should run. So if we take the example config from before:
<definitions>
<def name="clock">
<box>
The time is: {{my_time}} currently.
</box>
</def>
<def name="main">
<box>
<clock my_time="{{date}}"/>
</box>
</def>
</definitions>
and then look at
<widget>
<main/>
</widget>
we will see that eww will run <def name="main"> and not <def name="clock">.

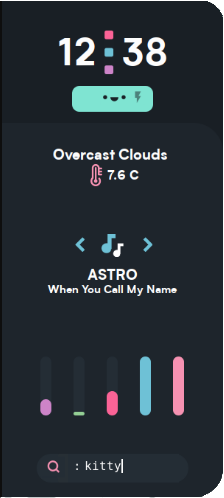

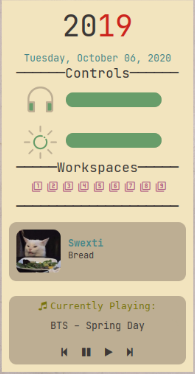

Widgets made in Eww
GTK
Gtk-Themeing
Eww is styled in GTK CSS. To make theming even easier, it makes use of scss and then compiles that into CSS for you. If you don't know any way to style something check out the GTK CSS Overview wiki, the GTK CSS Properties Overview wiki . Or check the GTK-Debugger
If you have NO clue about how to do CSS, check out some online guides or tutorials.
SCSS is very close to CSS so if you know CSS you'll have no problem learning SCSS.
GTK-Debugger
The debugger can be used for a lot of things. Especially if something doesn't work or isn't styled right. to enable it do
GTK_DEBUG=interactive ./eww open main_window
or in fish
env GTK_DEBUG=interactive ./eww open main_window
If a style or something similar doesn't work you can click on the icon in the top left icon to select the thing that isn't being styled or isn't being styled correctly.
Then you can click on the drop down menu in the top right corner and select CSS Nodes, here you will see everything about styling it, CSS Properties and how it's structured.
Troubleshooting
Here you will find help if something doesn't work, if the issue isn't listed here please open an issue on the github repo.
My scss isn't being loaded!
- You have not created a scss file
- The scss file isn't called correctly. (it should be called
eww.scssin the$HOME/.config/ewwfolder) - The scss file isn't placed in the correct location (check above)
- You have used two (or more) semi-colons (;;) insted of one (;) at the end of a line.
If none of these fixed your problem open an issue on the github repo. Or check the GTK-Debugger.
Eww can't find my configuration file!
- It's incorrectly named or it's in the wrong place (it should be called
eww.xmlin the$HOME/.config/ewwfolder) - You haven't started eww correctly or you started it wrong. (See Starting Eww)
Something isn't styled correctly!
- You have misstyped the CSS class.
- Check the GTK-Debugger
Remeber if your issue isn't listed here, open an issue on the github repo.
